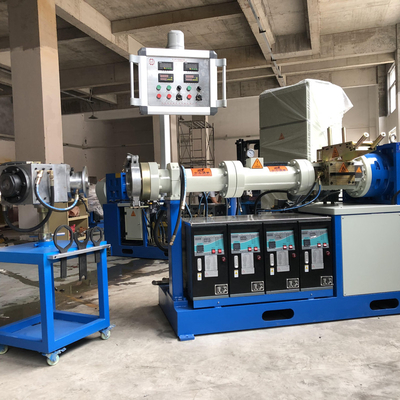

Factory 75mm co-extrusion rubber microwave 50mm continuous vulcanizing line for rubber sealing profile

1 set
MOQ
$38,000.00(1 - 1 sets) $35,000.00(>=2 sets)
preço
Factory 75mm co-extrusion rubber microwave 50mm continuous vulcanizing line for rubber sealing profile
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Condition: New
Output (kg/h): 300 kg/h
Screw diameter (mm): 90 mm
Screw Speed (rpm): 0 - 60 rpm
Screw L/D Ratio: 20:1
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2022
Warranty of core components: 1 Year
Core Components: PLC, Bearing, Motor, Motor, Gearbox, Screw
Dimension(L*W*H): 3000mm*950mm*1250mm
Power (kW): 85
Weight (KG): 3000 KG
Warranty: 1 Year, 1 year
Key Selling Points: Energy saving
Showroom Location: Egypt, Italy, Viet Nam, Indonesia, India, Russia, Thailand
Applicable Industries: Manufacturing Plant, Energy & Mining
Name: Microwave Continous Vulcanization Line for Rubber Sealing Profile
After-sales Service Provided: Engineers available to service machinery overseas, Video technical
dimension: 2500*1000*1520mm
Key words: High-accuracy
Color: customized
Item Name: Microwave Continous Vulcanization Line for Rubber Sealing Profile
certificate: CE, ISO9001:2008
electric heating power: 36kw
Informação básica
Certificação: CE, ISO9001:2008
Condições de Pagamento e Envio
Packaging Details: naked package, wooden pallet, wooden box
Supply Ability: 10 Set/Sets per Month
Descrição de produto
Product Overview

Click here to contact us !！

If you have any question ，we will follow up and give feedback to you immediately !！
PRODUCT SPECIFICATIONS
The rubber extruder can produce:
(1) Rubber single wall hose, rubber composite hose
(2) Rubber braiding hose, rubber knitting hose
(3) Rubber profiled strip
(4) Door & window sealing strips, used for car, ship, plane, railway and home decoration
(5) Rubber profiles with metal inserts
(6) Household appliances sealing strips, used for refrigerator, oven
(7) Foam hose, foam strip
(8) Rubber profiles for construction
(9) Rubber roller coated
(10)Automobile tires, motorcycle tires
(11)Automatic lift rubber handrail
(12)Rubber sheet
Here are the rubber products equipment composition.
(1) With extruder, extruder head,Die, high temperature vulcanization machine, microwave vulcanization machine (Optional
collocation), hot air vulcanization machine, cooling tank, traction machine,cutting machine or coiling machine can make rubber single wall hose.
(2) With extruder group, co-extrusion head, high temperature vulcanization machine, microwave vulcanization machine (Optional collocation), hot air vulcanization machine, cooling tank, traction machine,cutting machine or coiling machine rubber composite products.
(3) With extruder, extruder die head, braiding machine (knitting machine), caterpillar, gumming machine, another extruder and die head, cooling tank, caterpillar, cutting machine, coiling machine can make rubber braiding (knitting) hose.
(4) With extruder, extruder die head, high temperature vulcanization machine, microwave vulcanization machine (Optional
collocation), hot air vulcanization machine, cooling tank, traction machine,cutting machine can make rubber profile strip.
(5) With steel strip pay-off, steel strip welding machine, steel strip accumulator, steel strip degreasing machine, extruder
groups, co-extrusion die head, high temperature vulcanization machine, microwave vulcanization machine (Optional collocation), hot air vulcanization machine, cooling trough, caterpillar, steel strip breaking machine, punching machine, cutting machine, stack machine and take-up can make rubber profiles with metal inserts.
7) With extruder, extruder die head, high temperature vulcanization machine, microwave vulcanization machine (Optional
collocation), hot air vulcanization machine, cooling trough, caterpillar, stack machine and take-up can make rubber water-stop belt.
(8) With extruder,Composite transition device,Traction conveyor machine,Slicer and coiling, Stacking conveyor can makeButyl tape.
Extruder size
Screw diameter (mm)
Screw L/D ratio
Screw speed (r/min)
Motor power(KW)
Max output (KG/h)
Weight(kg)
150mm 20D (vacuum)
150
20:1
4-40
160
1000
6500
150mm 16D
150
16:1
4-40
132
800
6500
120mm 20D (vacuum)
120
20:1
5-50
110
700
5200
120mm 16D
120
16:1
5-50
110
600
5200
90mm 20D (vacuum)
90
20:1
5-50
55
320
3200
90mm 16D
90
16:1
5-50
55
280
3200
75mm 20D (vacuum)
75
20:1
5-50
37
160
1200
75mm 16D
75
16:1
5-50
37
140
1200
50mm 12D (vacuum)
50
12:1
5-50
7.5
50
600
FEATURES AT A GLANCE
Company Profile
 China famous brand extruder with latest technology
As a leader enterprise, YIBO has focused on the R&D and production of equipment as follows: Cold feed rubber extruder /Pin rubber extruder; NBR&PVC insulation foam pipe/sheet; Composite (co-extrusion) microwave curing line; ; Rubber hose (knitting/wrapping/braiding) production line; Butyl rubber waterproof tape production line; Salt-bath production line; Rubber water-stopper production line; Silicone tube/hose/sheet/ curing line; Smoke plasma treatment system, etc.
We sincerely invite customers from home and abroad to visit our company and seek for a
long-term and win-win cooperation.
Semi-finished product parking area
Inspection area
Assembly shop
Electric shop.
Welding shop
Final debugging shop
Machine shop
Warehouse

Our Services & Strength

1， Devoting to saving energy, reducing operating costs and environmental pollution,improving product quality and creating benefits for customers. YIBO has occupied a certain market share at home and abroad.

2, YIBO not only provides rubber equipments, but also provides rubber formula, mould design
and manufacturing, production technology, technical training, product OEM and other types of technical support and service, truly achieve one-stop service in rubber and plastic industry.
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Q1：What is the guarantee time ? if machines broken or lost during sea freight who will take responsible ?
A1：Guarantee time is for one year from Machine arrive customer sea port. for every export machine we buy insurance for it . if machine lost or broken during sea freight . we take responsible for it .

Q2：During Guarantee time , if machine broken by machine design ,what should we do?
A2：during guarantee time , if machine broken by machine design fault , we talk all responsible , for machine broken part free charge send to you

Q3：Which kind documents your company can provided?
A3：
after ship depart from China port ,we can get documents from Shipping company such as : bill or lading , insurance
documents.packing list , commercial invoice . if you need , we also can apply CO ,FORM F, FORM E etc.

Q4：After guarantee time , if we need spare parts , can you provided it ?
A4：
we can provided for the machine spare part .
